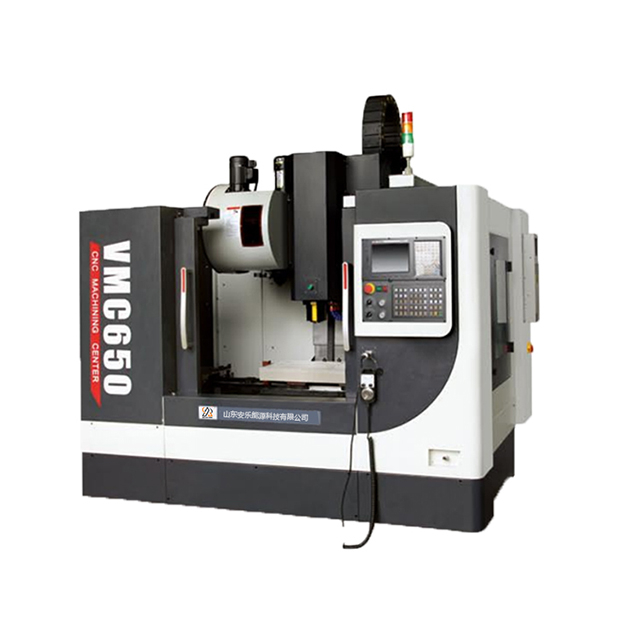

Vertical Machining Center is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.
| Quantity: | |
|---|---|
ALVMC640
ALLES CNC
Technology Parameter
Specifications | Uni | ALVMC650 |
| Table size | mm | 900×40 |
Table maximum load | kg | 450 |
X/Y/Z axis travel | mm | 650x400x500 |
The spindle maximum speed | kW | 3.7 |
Highest spindle speed | r/min | 8000 |
Repeat positioning accuracy | mm | ±0.004 |
Machine size (L×W×H) | mm | 2300×2200×2400 |
Net. weight (about) | kg | 4500 |
Vertical Machining Center Advantages
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japan NSK bearing
Germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Parts
CNC Control System
Standard:KND,
Optional: siemens, fanuc, syntec, mitsubishi and others.
Can be equipped with 16 knives
Standard with spindle unit.
Speed 8000rpm
Factory Display
Workpiece Display
ALTCK50A Series 3 Axis Vertical Machining Center Of After Sales
PRE SALE SERVICE
1)Provide corresponding guidance and equipment information according to customer development needs；
2)To solve the problems raised by customers, from the feasibility and the development needs of the local industries, formulate solutions;
AFTER-SALE SERVICE
1)The seller provides one time free installation and training in buyer’s factory. Seller pays for the airplane tickets and salary for engineers, buyer should provide accommodation and food to engineers.
2)The seller will provide technical guide’s e-mail, telephone, Wechat, Whatsapp and so on.
3)The seller should pay for the travel expense if local service needed within warranty time.
