ALCK6140X1000
ALLESCNC

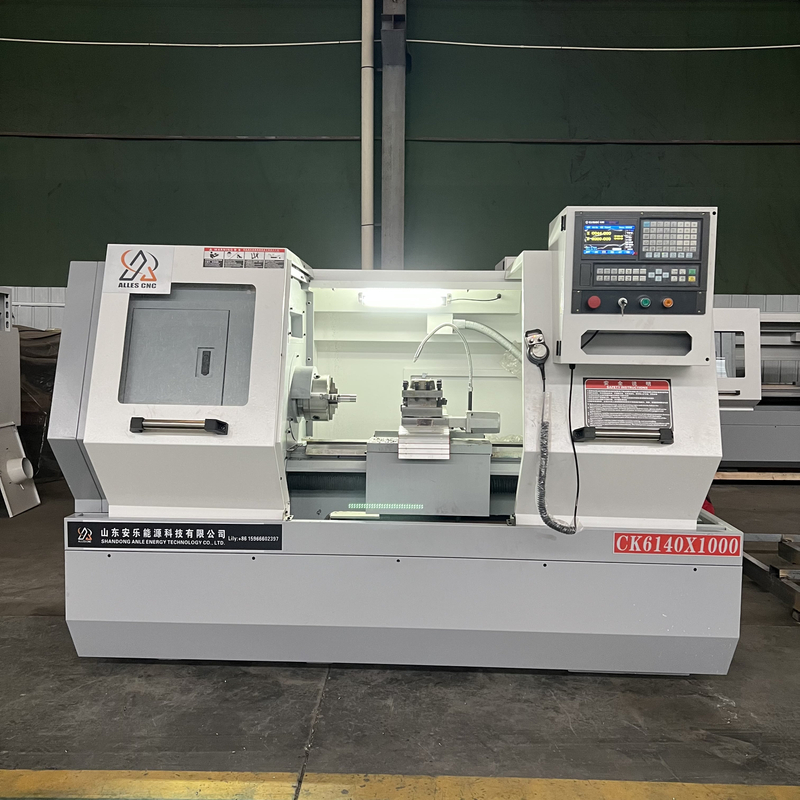

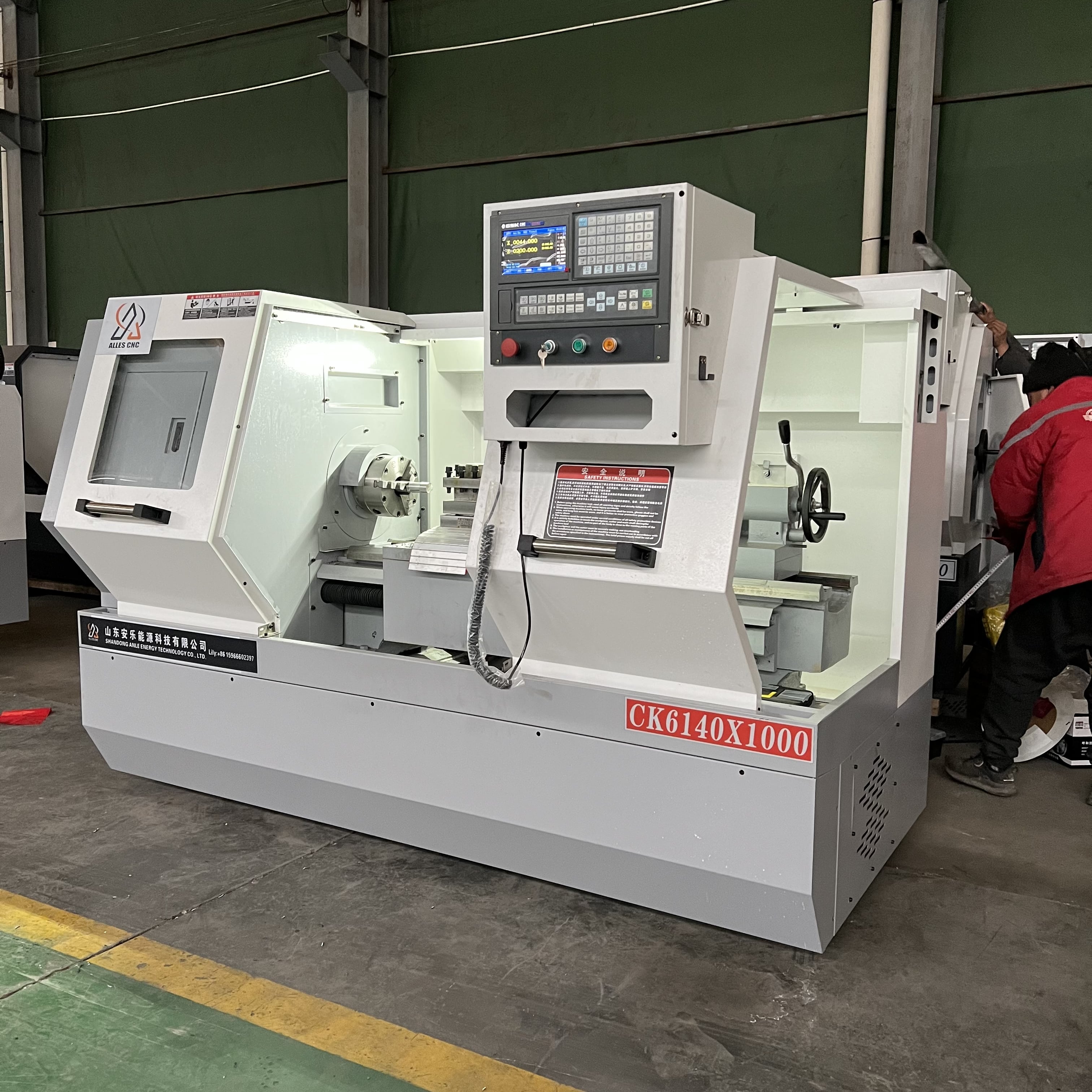

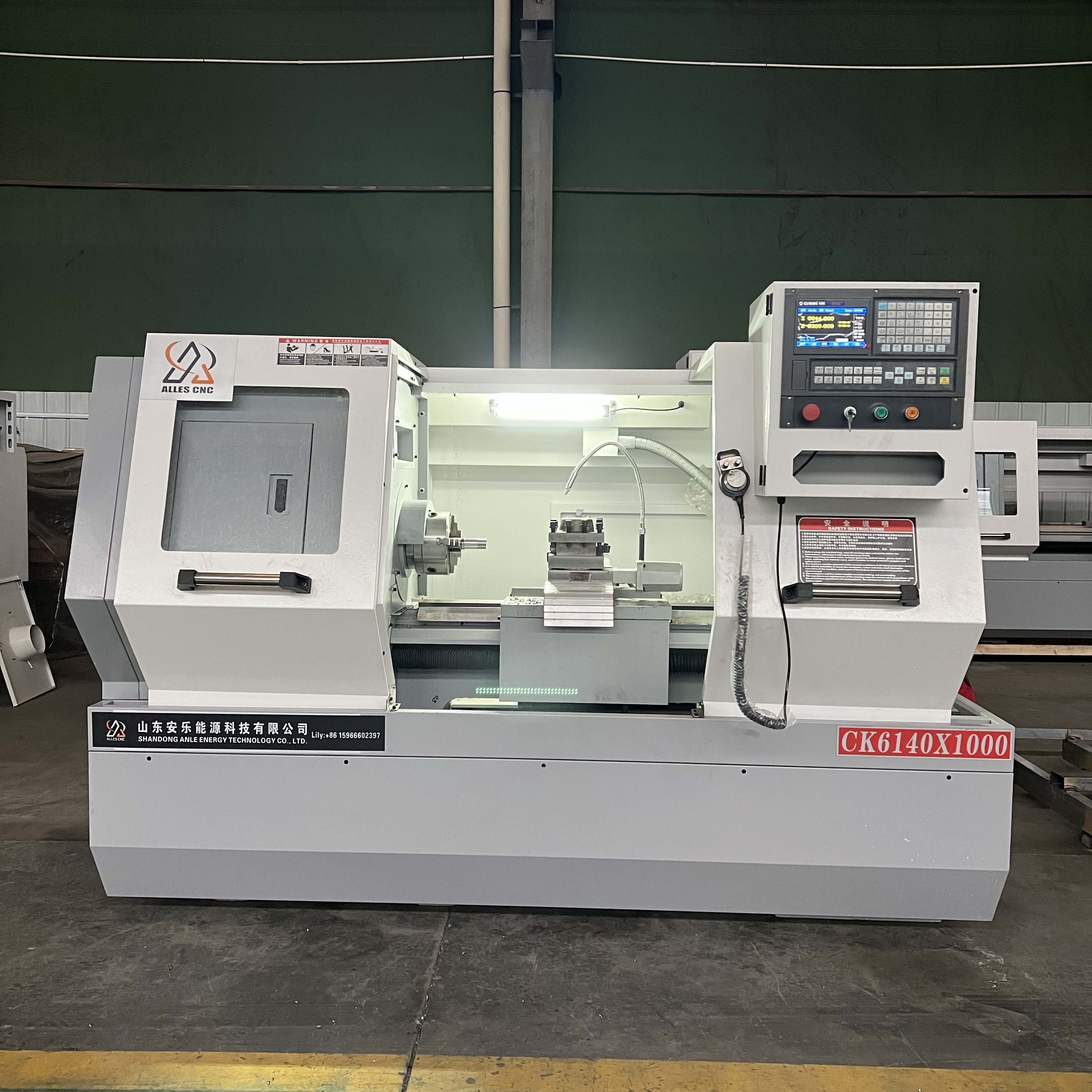

The ALCK6140X1000 CNC lathe is a flat-bed horizontal CNC turning machine built for precise, efficient machining of small-to-medium-sized metal parts. With a Φ400 mm swing over bed, Φ240 mm swing over slide and 1000 mm maximum turning length, it handles shafts, discs, sleeves and flanges with high rigidity and stable accuracy. A 5.5 kW main motor, 150–2000 rpm spindle range and 4-station electric tool post make it equally suitable for batch production and single-piece jobs.
| Item | Unit | Specification |
|---|---|---|
| Max. Swing Over Bed | mm | Φ400 |
| Max. Swing Over Slide | mm | Φ240 |
| Max. Cutting Diameter | mm | Φ400 |
| Max. Turning Length | mm | 1000 |
| X/Z Axis Travel | mm | 250 / 1000 |
| X/Z Axis Min. Increment | mm | 0.001 |

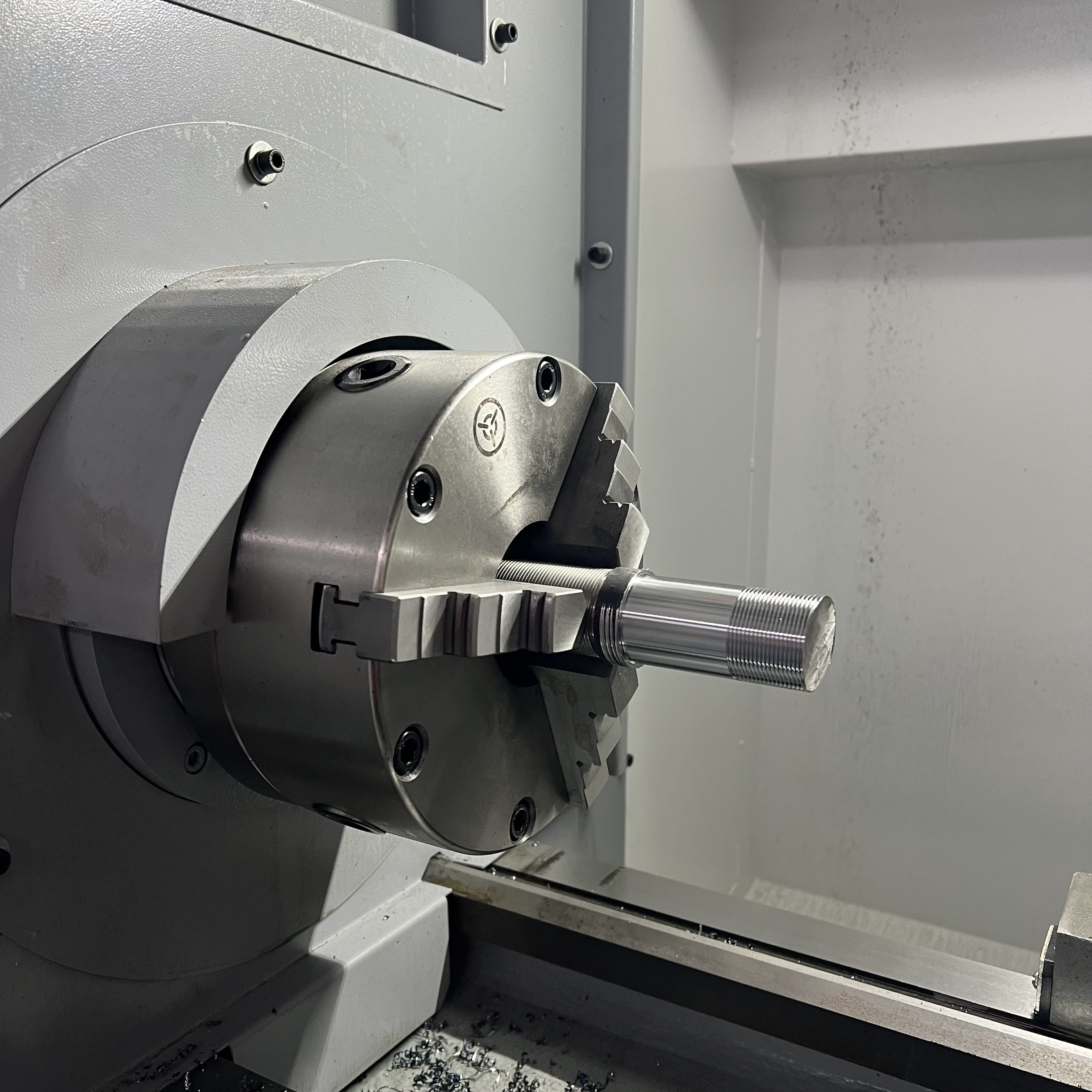

| Spindle Bore | mm | Φ52 |
| Spindle Nose | - | A2-6 / C6 |
| Spindle Speed Range | rpm | 150–2000 |
| Main Motor Power | kW | 5.5 |
| X/Z Axis Rapid Traverse | m/min | 6 / 8 |

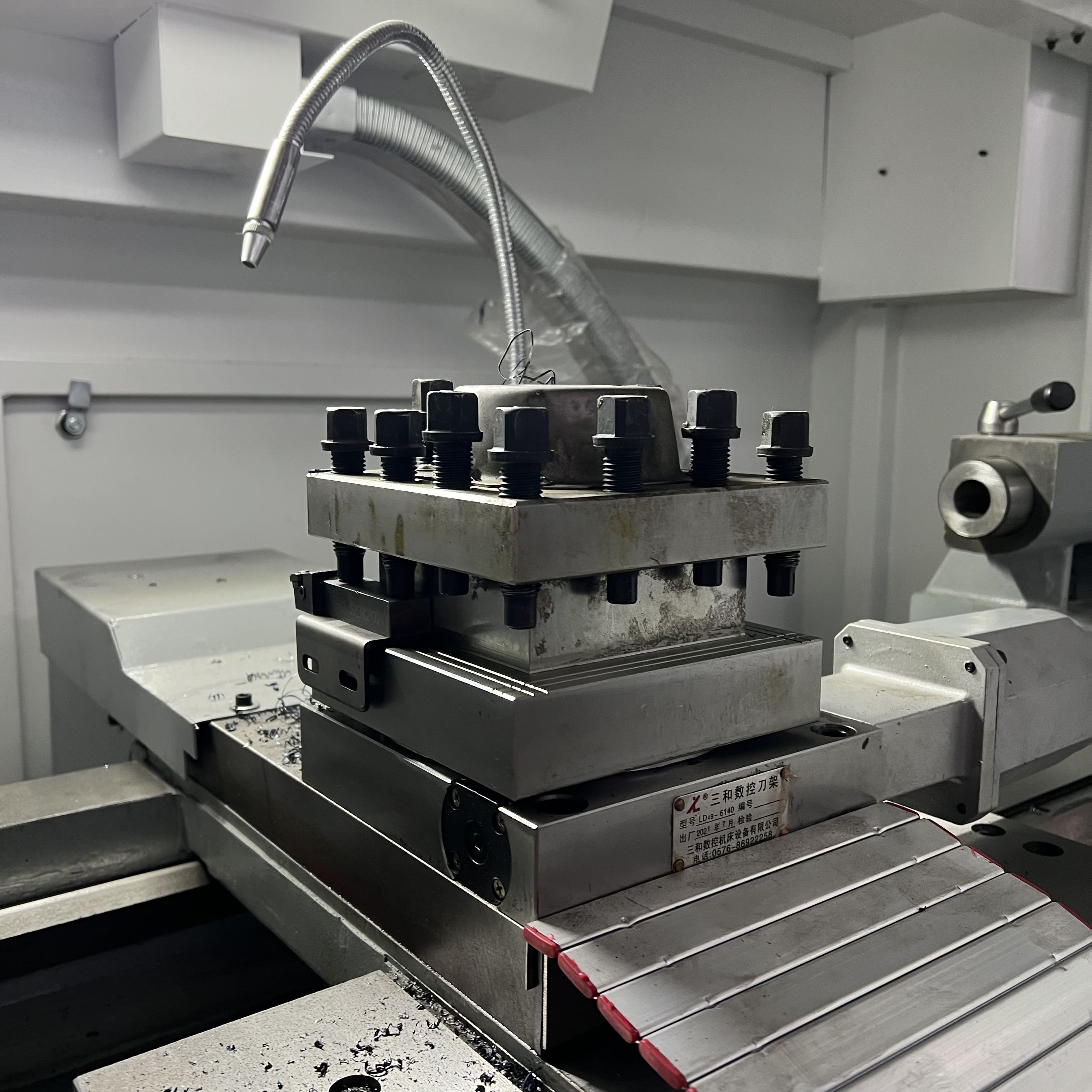

| Tool Post | - | 4-station electric tool holder |
| Tool Shank Size | mm | 20 × 20 |
| Tool Post Repeatability | mm | ≤0.004 |

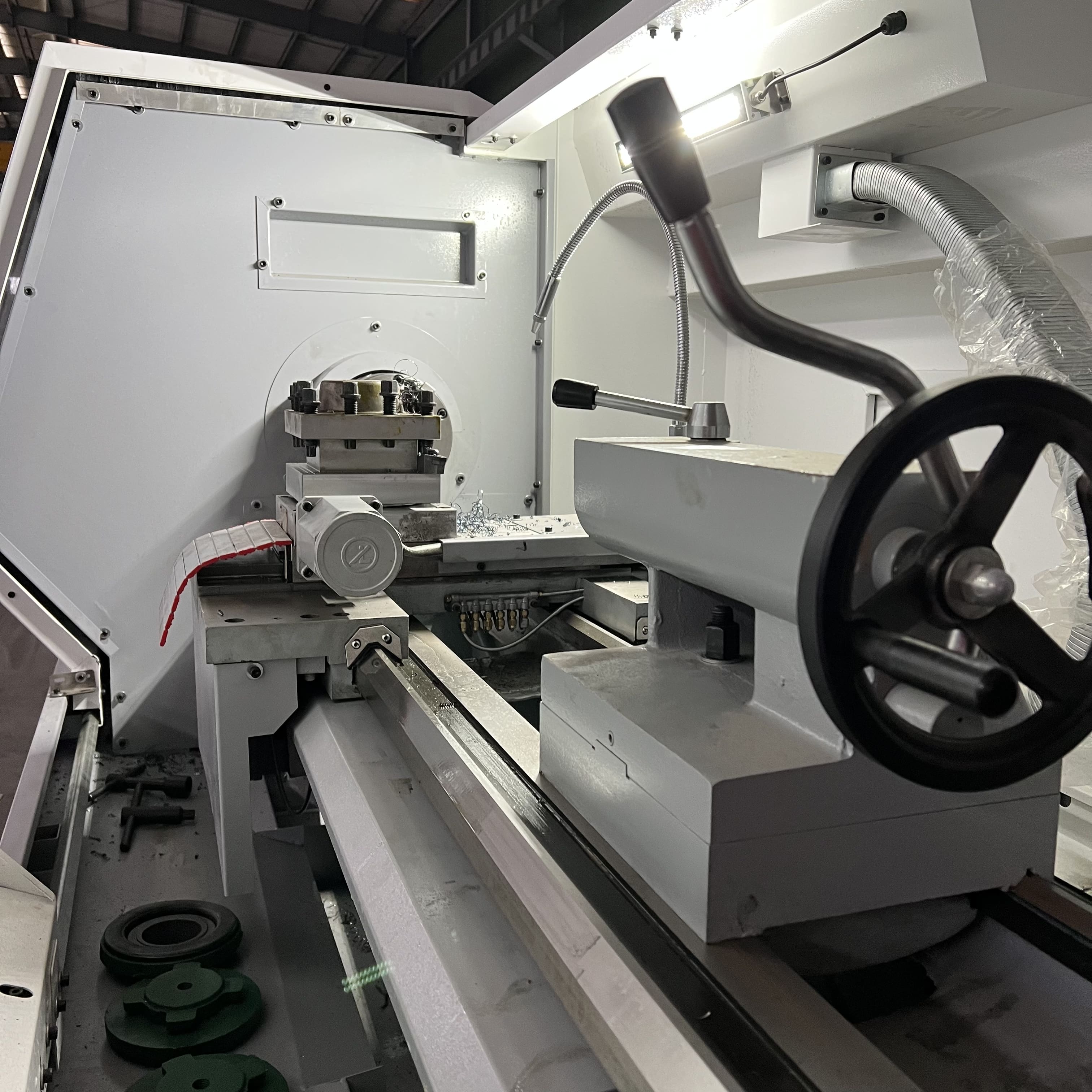

| Tailstock Sleeve Diameter | mm | Φ65 |
| Tailstock Sleeve Travel | mm | 130 |

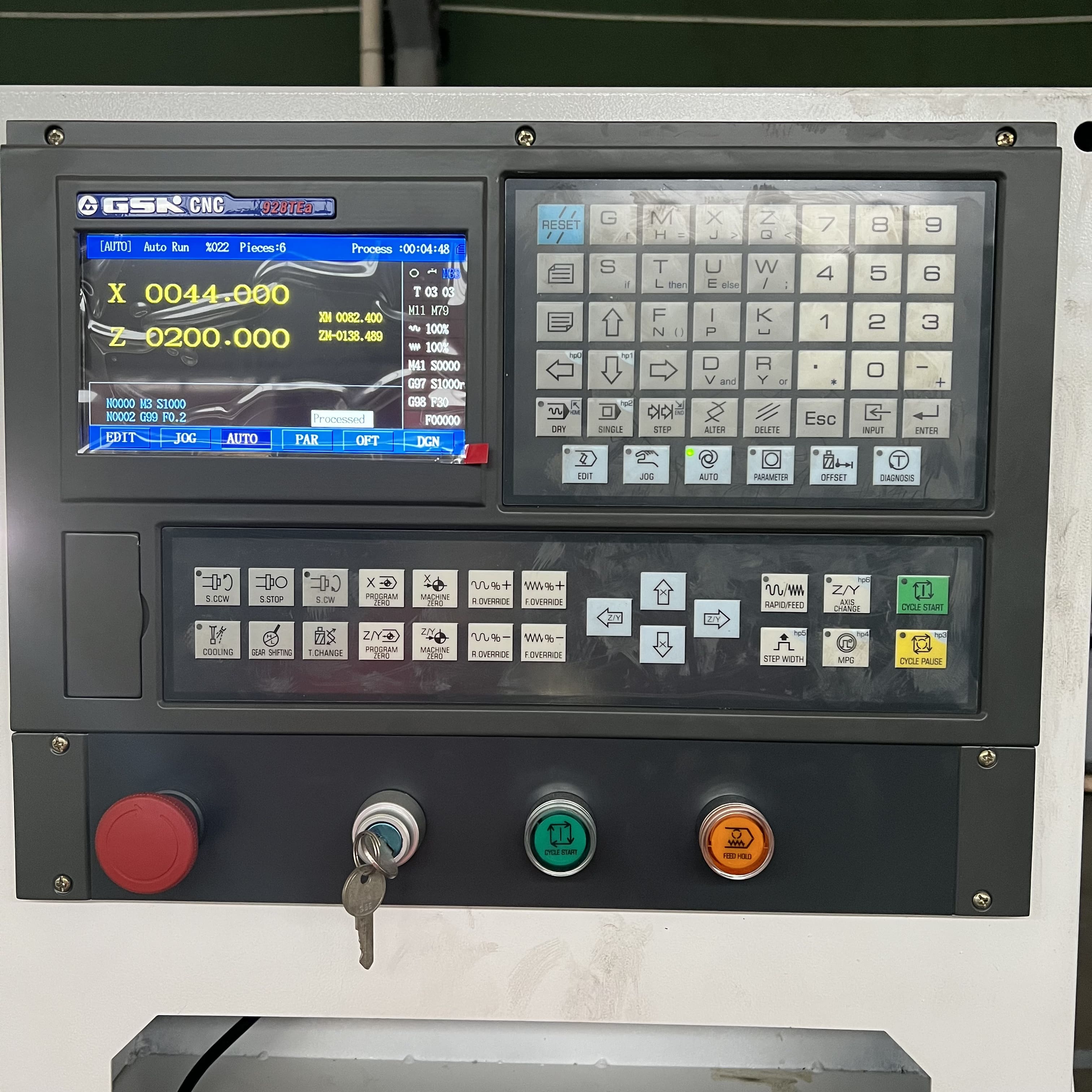

| Control System | - | GSK standard; Siemens / Fanuc / KND optional |
| Power Supply | kW / A | 11 kW / 20 A |
| Machine Weight | kg | 2000 |
| Machine Dimensions (L×W×H) | mm | 2800 × 1500 × 1750 |
Q: What is the maximum turning length of the ALCK6140X1000 CNC lathe?
A: The maximum turning (processing) length is 1000 mm, with a maximum cutting diameter of Φ400 mm.
Q: What is the spindle specification of the ALCK6140X1000?
A: It has a Φ52 mm spindle bore, A2-6/C6 spindle nose and a 150–2000 rpm speed range driven by a 5.5 kW main motor.
Q: Which industries is this CNC lathe suitable for?
A: It is widely used in automotive, aerospace, oil & gas, general machinery and steel industry machining.
Q: Which control systems are available?
A: GSK is standard; Siemens, Fanuc and KND systems are available as options.
Q: What optional configurations can be added?
A: Hydraulic or pneumatic chuck, 4/6/8-station electric tool post, automatic bar feeder, chip conveyor, parts catcher and hydraulic tailstock.
