The ALCK6150X1000 CNC lathe is a high-precision horizontal turning machine designed for medium-sized parts. With a Φ500mm swing over bed, 1000mm maximum turning length and a rigid cast-iron bed, it delivers stable performance, high repeatability and efficient production for both batch and single-piece machining.
| Quantity: | |
|---|---|
ALCK6150X1000
ALLESCNC

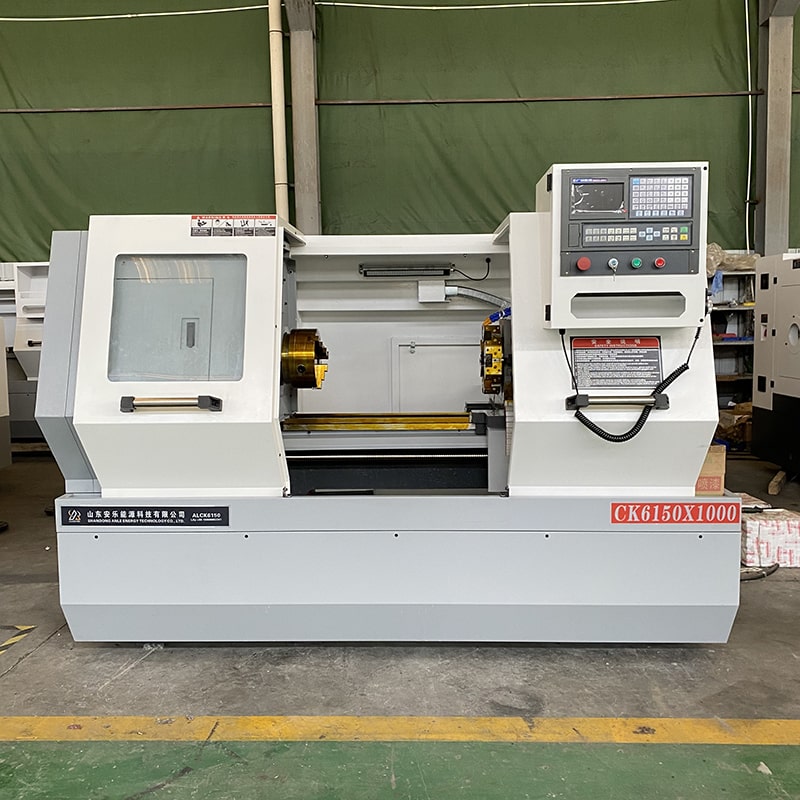

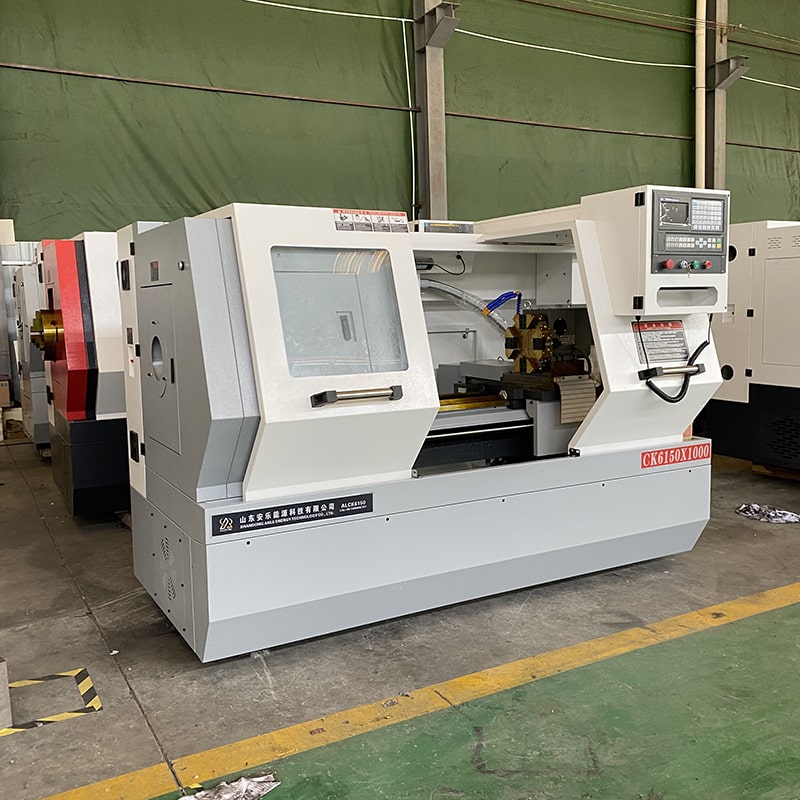

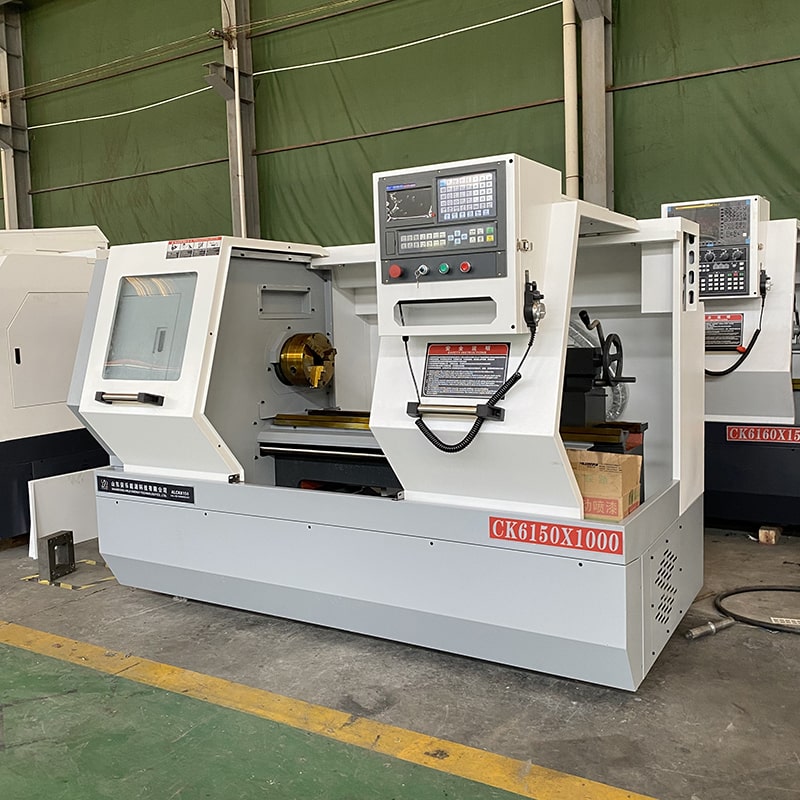

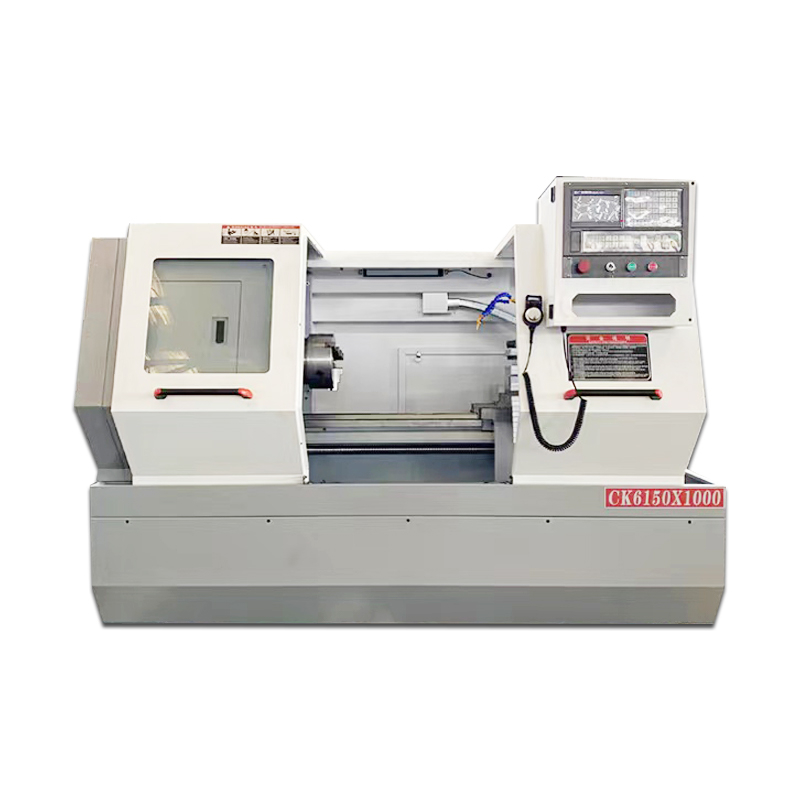

The ALCK6150X1000 CNC lathe is a flat-bed horizontal CNC turning machine built for precise, efficient machining of medium-sized metal parts. With a Φ500 mm swing over bed, Φ290 mm swing over slide and 1000 mm maximum turning length, it handles shafts, discs, sleeves and flanges with high rigidity and stable accuracy. A 7.5 kW main motor, 150–2000 rpm spindle range and 4-station electric tool post make it equally suitable for batch production and single-piece jobs.
Automotive: shafts, brake discs, gear blanks and other auto parts
Aerospace: precision structural components and engine parts
Oil & Gas: valve bodies, bushings and pipe fittings
General Machinery: shafts, discs, sleeves, flanges and mold components
Steel & Mining Equipment: bearings, bushings and journals
Item | Unit | Specification |
|---|---|---|
Max. Swing Over Bed | mm | Φ500 |
Max. Swing Over Slide | mm | Φ290 |
Max. Cutting Diameter | mm | Φ500 |
Max. Turning Length | mm | 1000 |
X/Z Axis Travel | mm | 300 / 1000 |
X/Z Axis Min. Increment | mm | 0.001 |
Spindle Bore | mm | Φ82 |
Spindle Nose | - | A2-8 / C8 |
Spindle Speed Range | rpm | 150–2000 |
Main Motor Power | kW | 7.5 |
X/Z Axis Rapid Traverse | m/min | 6 / 8 |

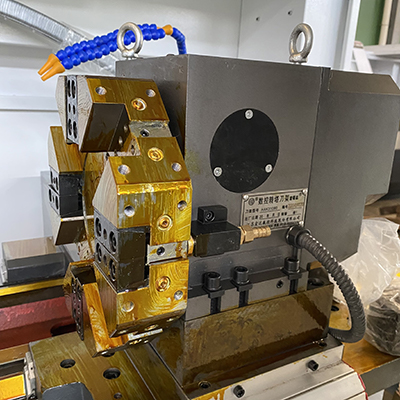

Tool Post | - | 4-station electric tool holder |
Tool Shank Size | mm | 25 × 25 |
Tool Post Repeatability | mm | ≤0.004 |
Tailstock Sleeve Diameter | mm | Φ65 |
Tailstock Sleeve Travel | mm | 130 |
Control System | - | GSK standard; Siemens / Fanuc / KND optional |
Power Supply | kW / A | 15 kW / 20 A |
Machine Weight | kg | 2500 |
Machine Dimensions (L×W×H) | mm | 3030 × 1600 × 2050 |
Q: What is the maximum turning length of the ALCK6150X1000 CNC lathe?
A: The maximum turning (processing) length is 1000 mm, with a maximum cutting diameter of Φ500 mm.
Q: What is the spindle specification of the ALCK6150X1000?
A: It has a Φ82 mm spindle bore, A2-8/C8 spindle nose and a 150–2000 rpm speed range driven by a 7.5 kW main motor.
Q: Which industries is this CNC lathe suitable for?
A: It is widely used in automotive, aerospace, oil & gas, general machinery and steel industry machining.
Q: Which control systems are available?
A: GSK is standard; Siemens, Fanuc and KND systems are available as options.
Q: What optional configurations can be added?

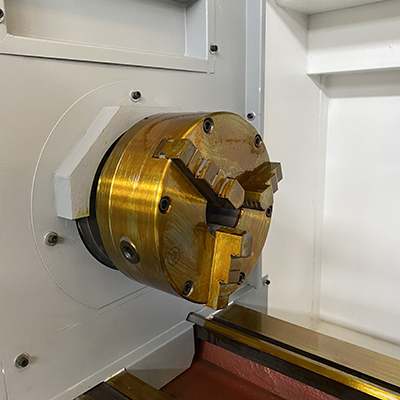

A: Hydraulic or pneumatic chuck, 4/6/8-station electric tool post, automatic bar feeder, chip conveyor, parts catcher and hydraulic tailstock.
