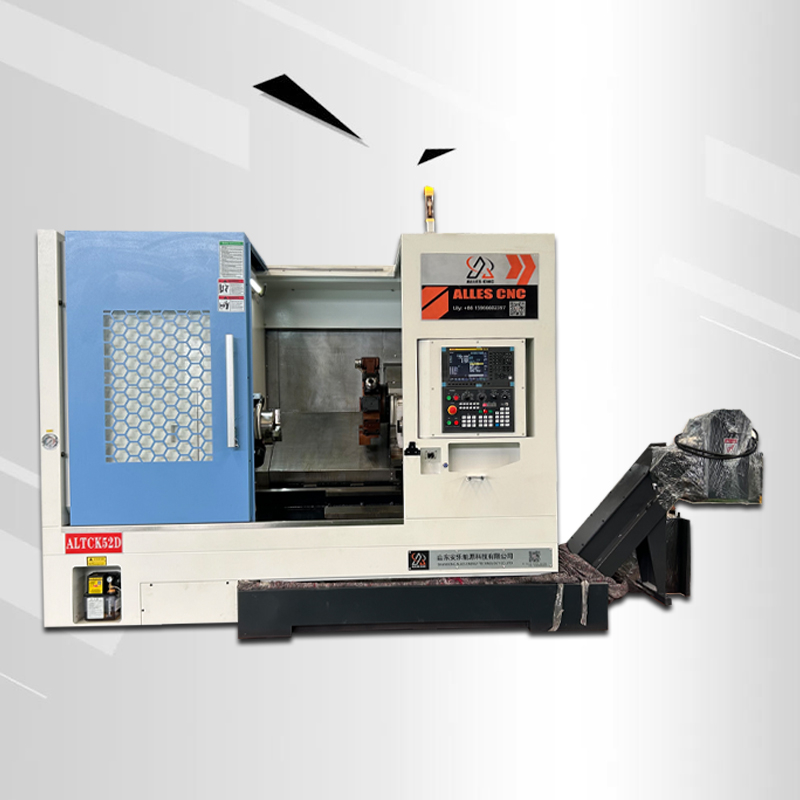

ALTCKY
ALLES CNC
Product advantages:
1、Comprehensive Processing: CNC turning and milling composite machining can simultaneously perform turning and milling operations, realizing integrated processing for various techniques, enhancing processing flexibility, and improving efficiency.
2、Reduced Setup Procedures: With CNC turning and milling composite machining, multiple machining steps can be completed on the same machine, reducing the need for workpiece setup, minimizing cumulative errors, and enhancing machining precision.
3、Time and Cost Savings: Simultaneous turning and milling operations eliminate the need to transfer workpieces between different machines, accelerating production cycles and reducing production costs.
4、Complex Shape Machining: CNC turning and milling composite machining, facilitated by multi-axis motion systems, achieves high-precision machining for complex shapes, including threads, surfaces, and slots.
5、High Precision Machining: The application of CNC technology enhances machining precision, ensuring compliance with quality and precision requirements for workpieces.
6、Versatility: CNC turning and milling composite machine tools exhibit strong versatility, adapting to the machining needs of different types and materials of workpieces, thereby increasing equipment flexibility.
7、High Automation Level: The CNC system automates the entire machining process, reducing human-operated errors and improving production efficiency.
8、Suitable for Small-Batch Production: CNC turning and milling composite machining is well-suited for small-batch, diversified production requirements, offering increased flexibility to adapt to market variations.
In summary, CNC turning and milling composite technology demonstrates significant advantages in enhancing processing efficiency, reducing costs, improving precision, and adapting to diversified production needs. As a result, it has found widespread application in modern manufacturing industries.
Product Specifications:
| Item | ALTCK52Y |
Maximum turning diameter on the bed | Φ600 |
Maximum machining diameter | Φ220 |
| Maximum Z travel | 550 |
| Maximum machining shaft length (chuck + tailstock) | within 350 |
| Maximum X-direction travel | 180 (radius value) |
| Maximum Y travel | 100(±50) |
| Fast movement speed | X:30 Z:30 Y:30 |
| Spindle through hole diameter | Φ66 (optional Φ79) |
| Spindle unit nose form | A2-6 |
| Hollow hydraulic rotary cylinder | 852 (can pass through bars within Φ52) |
| Spindle motor power | 7.5/11 servo motor (optional 11/15) |
| Spindle speed | 4500 |
| Power turret model | 80-12T |
| Circular tool size | 25*25 (optional 20*20) |
| Boring shank size | Φ32 |
| Power tool holder specifications | BMT55(BMT45) |
| Maximum stroke of tailstock sleeve | 90 |
| Tailstock sleeve diameter | Φ70 |
| Chuck Specifications | Φ200 (8 inches) |
| Cooling water pump power | 450 high pressure centrifugal pump |
| Machine weight | ≈3500 |
| Machine tool dimensions (length*width*height) | ≈2000(2265)*1700*2075(excluding chip conveyor) |
